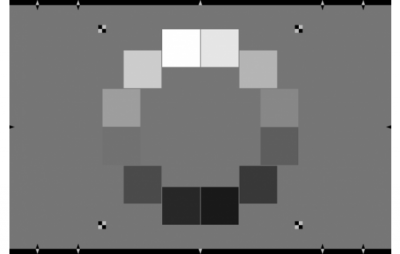

This Camera Contrast Chart conforms to International Standard ISO-14524, Photography - Electronic Still Picture Cameras - Methods for Measuring Opto-Electronic Conversion Functions (OECF). Nominal patch densities are 0.1, 0.2, 0.31, 0.43, 0.56, 0.7, 0.87, 1.05, 1.27, 1.53, 1.86, and 2.30. It is well suited for measuring noise as well as OECF (Opto Electronic Conversion Function).
| Part No. | Overall Size | Material / Process |
|---|---|---|
| ISO-14524-IJ | 483 mm × 304 mm | Semi-gloss paper with ink jet printing |
| ST-52-RM | 356 mm × 200 mm | Reflective material with photographic printing |
