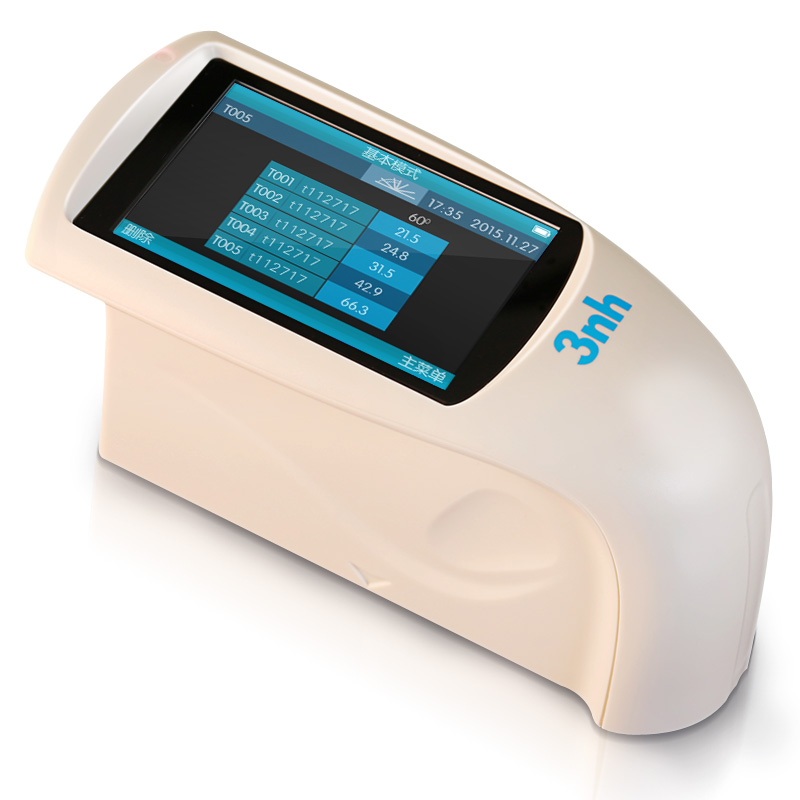

NHG268 gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.
NHG268 gloss meter can test material with high gloss (0-2000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.
|NHG268 Multi-angle Precise Gloss Meter|
Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
|Measuring Area (mm)||20°: 10x10 60°: 9x15 85°: 5x36|
|Measuring Range||20°:0~2000GU 60°:0~1000GU 85°：0~160GU|
0-10GU 10-100GU 100-2000GU
± 0.1GU ± 0.2GU ± 0.2%GU
± 0.2GU ± 0.5GU ± 0.5%GU
|Measurement Standard||Conform with JJG696 first class glossmeter working requirement|
|Chromaticity Corresponding||Corresponding with CIE 1931(2°) under CIE C light source|
|Errors||±1.2 , ± 1.2%|
|Dimension||L*W*H : 160mm*75mm*90mm|
|Battery||3200mAh Li-ion Battery ，>10000 times(within 8 hours)|
|Display||TFT 3.5 inch, capacitive touch screen|
|Storage||Basic mode: 1000; Statistical Mode: 5000，Continuous mode : 5000|
|Software||GQC6 Quality Control Software with QC report printing functions and more extended functions.|
|Humidity||<85% relative humidity, no condensation|
|Standard Accessories||Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate|
|Optional Accessories||Miniature Printer|
|Note||The specifications are subject to change without notice.|
