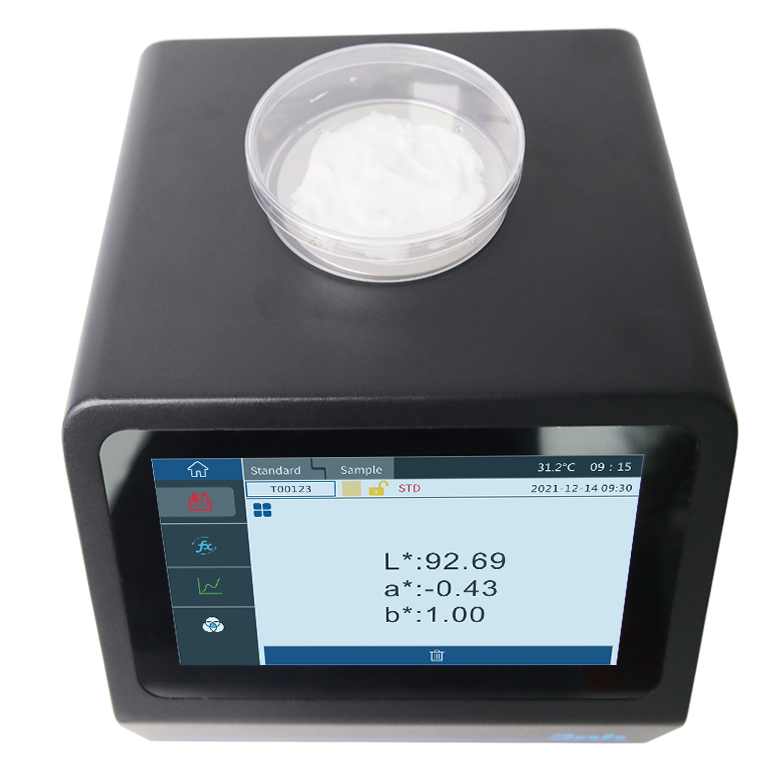

PS808 Spectrocolorimeter

The Particle Spectrophotometer utilizes a 45/0 optical geometry and is equipped with a 50 mm large measurement aperture, complying with ASTM D6290-19 and other particle color test methods.....

86-755-26508999 Get More Information

Contact Us

Thanks for your interest in - Please tell us a little about yourself and one of our color experts will be in touch shortly.

All Fields Required

Name * Required

Email Address * Please enter a valid email address

Phone Number * This field should contain only numbers

Comments Required

I give 3nh permission to provide me with information about their products and services, and related products and services from 3nh’s affiliates.

One of our experts can help configure and price this product for you.

Product Presentation

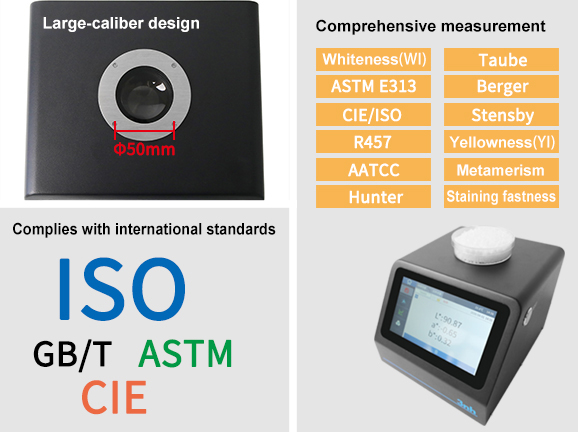

I. Tailored for Particle Sample Testing, Meeting Diverse Needs

1. Special Large Aperture Design: The 50 mm measurement aperture is suitable for non-uniform samples such as granules, powders, and textured materials.

2. Full Industry Color Indices Support: whiteness (WI, supporting ASTM E313, CIE/ISO, R457, AATCC, Hunter, Taube, Berger, Stensby), yellowness (YI, supporting ASTM D1925, ASTM 313), tint (supporting CIE/ISO, ASTM E313-20), metamerism index MI, staining fastness, color change fastness, strength, hiding power, color density CMYK.

3. Compliance with International Standards: Strictly follows CIE No.15, GB/T 3978, ISO 7724-1, ASTM E1164.

Tailored for Particle Sample Testing, Meeting Diverse Needs

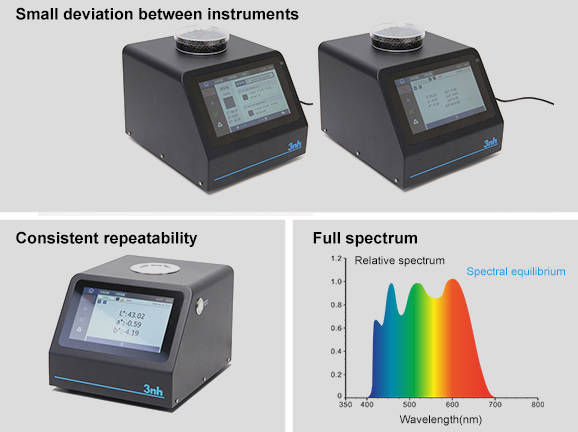

II. Precision Measurement, Reliable and Stable Data

1. High Repeatability: Color value repeatability ΔE*ab ≤ 0.03; spectral reflectance standard deviation ≤ 0.1% (≤ 0.2% in 400-700 nm band).

2. Inter-Instrument Agreement: ΔE*ab ≤ 0.35 (average of measurements on 12 BCRA Series II color tiles).

3. Full-Band Accurate Acquisition: 400-700 nm, wavelength interval 10 nm, half-bandwidth 10 nm, reflectance range 0-200%.

Precision Measurement, Reliable and Stable Data

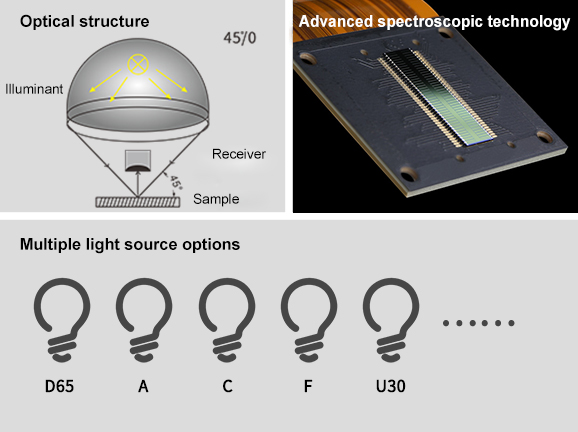

III. Professional Optical System Design, Adaptable to Various Measurement Scenarios

1. Standard 45/0 Optical Geometry: 45° annular uniform illumination and 0° reception.

2. Advanced Spectrophotometric Technology: Nano-integrated spectral device combined with a dual-array silicon photodiode array. Measurement time only about 1 second.

3. Rich Light Source Options: Built-in over 40 standard observation light sources (D65, A, C, F-series, etc.), supporting 2°/10° observer angles.

Professional Optical System Design, Adaptable to Various Measurement Scenarios

IV. Efficient and Convenient Operation & Data Management, Suited for Industrial Applications

1. Fast Measurement: Single measurement takes only about 1 second. Supports single measurement and average measurement modes (2-99 times).

2. Intuitive Visual Operation: 7-inch true-color capacitive touchscreen.

3. Large Storage Capacity: Stores up to 1,000 master sample data and 30,000 test sample data.

4. Cross-Platform Software Compatibility: Professional quality management software (download from official website).

5. Multi-Language Support: Simplified Chinese, English, Traditional Chinese, Russian.

Data Management, Suited for Industrial Applications

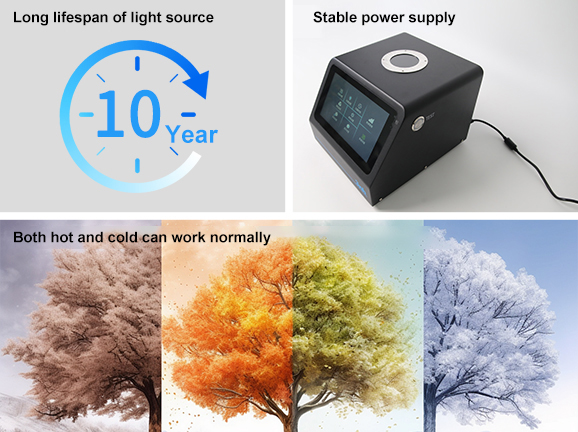

V. High-Grade Durability & Strong Environmental Adaptability, Stable Under Complex Conditions

1. Long-Life Light Source: Combined LED light source with service life up to 10 years or >2 million measurements.

2. Broad Environmental Adaptability: Operating temperature range 0-40℃, 0-85%RH (non-condensing), altitude below 2000 m. Storage temperature range -20-50℃.

3. Stable Power Supply: 24 V DC, 3 A power adapter.

Strong Environmental Adaptability, Stable Under Complex Conditions

Product Model	PS808
Product Name	Particle Spectrophotometer
Optical Geometry	45/0 (45° annular uniform illumination, 0° reception); Conforming to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO 7724-1, ASTM E1164, DIN 5033 Teil 7
Features	The Particle Spectrophotometer utilizes a 45/0 optical geometry and is equipped with a 50 mm large measurement aperture, complying with ASTM D6290-19 and other particle color test methods. The instrument provides a wide measurement area and highly representative data, making it ideal for color measurement of granular samples. Widely used for precise color measurement and quality control in industries such as plastics & electronics, paints & inks, textile & apparel dyeing, printing, ceramics, and food.
Light Source	Combined LED light source
Integrating Sphere Size	/
Specular Component	/
Spectrophotometric Method	Nano-integrated spectral device
Sensor	Silicon photodiode array (dual-array, 20 groups)
Measurement Wavelength Range	400-700 nm
Wavelength Interval	10 nm
Half-Bandwidth	10 nm
Reflectance Measurement Range	0-200%
Measurement Aperture	50 mm
Observation Light Sources	D65,A,C,D50,D55,D75, F1,F2,F3,F4,F5,F6, F7,F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30,B,U35,NBF,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5
Observer Angle	2°/10°
Color Spaces	CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, HunterLab, βxy, DIN Lab99, Munsell (C/2)
Color Difference Formulas	ΔEab, ΔEuv, ΔE94, ΔEcmc(2:1), ΔEcmc(1:1), ΔE00, DINΔE99, ΔE(Hunter)
Other Chromaticity Indices	Spectral reflectance, WI (ASTM E313, CIE/ISO, R457, AATCC, Hunter, Taube, Berger, Stensby), YI (ASTM D1925, ASTM 313), Tint (CIE/ISO, ASTM E313-20), Metamerism Index MI, Staining fastness, Color change fastness, Strength, Hiding power, Color density CMYK
Repeatability	Spectral reflectance: standard deviation ≤ 0.1% (400-700 nm: ≤ 0.2%); Colorimetric values: ΔE*ab ≤ 0.03
Inter-Instrument Agreement	ΔE*ab ≤ 0.35 (average of measurements on 12 BCRA Series II color tiles)
Display	Spectral graph/data, sample colorimetric values, color difference values/graph, pass/fail results, color bias
Measurement Time	Approx. 1 s
Measurement Mode	Single measurement, average measurement (2-99 times)
Dimensions	210 x 245 x 188 mm
Weight	3.1 kg
Power Supply	24 V DC, 3 A power adapter
Light Source Lifespan	10 years or >2 million measurements
Display Screen	TFT true-color 7-inch capacitive touchscreen
Interface	USB, Bluetooth
Storage	1,000 standard samples, 30,000 test samples
Language	Simplified Chinese, English, Traditional Chinese, Russian
Operating Temperature Range	0-40℃, 0-85%RH (non-condensing), altitude below 2000 m
Storage Temperature Range	-20-50℃, 0-85%RH (non-condensing)
Standard Accessories	Power adapter, data cable, user manual, quality management software (download from official website), white plate, Petri dishes x 2
Optional Accessories	Micro printer
Note:	Technical specifications are for reference only. Subject to change without notice.
